Why HMI Design Should Prioritize Operator Workload (and How to Do It Right)

Is your HMI easing the operator workload or adding to it?

In a world where milliseconds matter, a single unreadable dashboard can be the difference between control and catastrophe.

Consider the BP Texas City Refinery explosion in 2005, where a series of operator errors, exacerbated by poor alarm management and ineffective Human-Machine Interface (HMI) design, led to a catastrophic accident resulting in 15 deaths and over 180 injuries. The U.S. Chemical Safety and Hazard Investigation Board (CSB) identified that key alarms and level indicators failed to operate properly, preventing operators from recognizing unsafe conditions in time.

At the center of it all lies a crucial yet often underestimated element: the Human-Machine Interface (HMI).

HMI design isn’t just about creating sleek dashboards or attractive control panels. It’s about empowering decision-making under pressure, ensuring safety-critical responses, and sustaining productivity in high-stakes industrial environments. At the heart of it all is the operator—the individual who monitors, interprets, and interacts with increasingly complex systems every single day.

What is HMI (Human-Machine Interface)?

An HMI is the interface that allows humans to interact with machines, showing real-time data, alerts, and controls. From touchscreens on the plant floor to advanced SCADA systems, HMI-designed displays are critical for monitoring and managing complex operations.

But many HMI-designed displays focus on data output rather than operator usability. When screens are cluttered, hard to navigate, or poorly prioritized, they increase cognitive load and slow down critical decisions, putting both safety and performance at risk.

Why Operator Workload Matters in HMI Design?

In high-risk industrial environments, operators are the last line of defense—making split-second decisions that can protect people, equipment, and productivity. Their ability to succeed under pressure depends not just on training, but on how clearly and efficiently they can interact with the system in front of them.

This is why operator workload matters in HMI design:
Because every extra second spent deciphering a cluttered screen, navigating a complex menu, or interpreting ambiguous data increases cognitive strain, slows response time, and raises the risk of error. The more mentally and physically demanding the interface, the more likely it is to break down under stress.

📍 Case in Point:
During the Three Mile Island nuclear incident (1979), a combination of equipment issues and poorly designed control room interfaces overwhelmed operators with confusing and inconsistent data. This directly contributed to delayed actions and a partial meltdown—a tragic, real-world example of how interface design can shape outcomes when every moment counts.

This blog dives deep into why modern HMI design must prioritize operator workload—and how to do it right. From understanding cognitive load to leveraging layout, color, and adaptive logic, you’ll discover the essential principles and actionable strategies behind workload-aware industrial UX.

What Is Operator Workload in the Context of HMI Design?

When we talk about operator workload, we’re not just referring to the number of tasks an operator performs in a shift. We’re talking about the mental and physical demands placed on a human being who must monitor, process, and respond to complex information, often in real time, and often with high consequences.

In HMI (Human-Machine Interface) design, operator workload refers to the cognitive, visual, motor, and emotional effort required to interact effectively with machines and systems. This includes:

• Cognitive Load: How much information an operator must understand, remember, and apply to make decisions.

Modern UX design interfaces often present vast amounts of data in real time. Without prioritization, even well-designed cloud-based dashboards like this can contribute to cognitive overload.

• Visual Load: How clearly and quickly important data can be seen and interpreted, especially during emergencies.

An example of a well-structured HMI interface with balanced elements, prioritized alerts, and clean contrast. It shows how critical information can be emphasized without overwhelming the user, keeping visual load in check during high-pressure situations.

• Emotional Stress: The pressure of knowing that every second counts in safety-critical environments.

• Motor Tasks: Physical interaction with screens, buttons, or controls—especially relevant in touchscreen HMI design.

Touch-based HMIs demand physical accuracy, timing, and repetitive hand movements. Ergonomics, button size, screen responsiveness, and placement all affect how easily operators can perform tasks without fatigue or error.

Why Reducing Operator Workload Pays Off

When operator workload is reduced through smart, user-centered HMI design, the results are tangible:

✅ Faster decisions
✅ Fewer mistakes
✅ Improved safety
✅ Higher performance and job satisfaction

Why It Matters for Industrial HMI Systems

In settings like energy production, chemical processing, or transportation, operators are the first line of defense against system failures. When HMI design increases workload through cluttered layouts, poor alarm hierarchies, or non-intuitive navigation, it becomes harder for operators to maintain situational awareness.

Studies in human factors engineering have consistently shown that higher cognitive load increases the risk of delayed reactions, missed signals, and operational errors. Even small design flaws—like burying critical alarms in a menu or using ambiguous color coding—can snowball into serious consequences.

Real Talk: Workload Is the UX Metric That Industrial Teams Can’t Afford to Ignore

In consumer UX, the focus is often on smooth, frictionless flows and making interfaces feel intuitive. But industrial UX demands more, much more. It’s not just about ease of use; it’s about actively reducing mental friction to protect lives, preserve machinery, and ensure the continuity of entire operations.

A workload-aware HMI design for mission-critical interfaces does exactly that. By transforming complex systems into clear, manageable experiences, it helps operators stay focused, make better decisions, and perform at their best—even under intense stress or during critical events.

The Business Case: Why Reducing Operator Workload Matters

Reducing operator workload is more than easing tasks—it’s a crucial business strategy. Poor HMI design that overwhelms operators can lead to costly safety incidents, lower productivity, and financial losses.

• Improved Safety: Lower workload reduces human error, preventing accidents and equipment failures.

• Higher Productivity: Less cognitive strain means faster, more accurate decisions and less downtime.

• Cost Savings: Investing in smart HMI design cuts operational costs, insurance premiums, and compliance risks.

• Better Operator Satisfaction: Intuitive interfaces reduce stress and fatigue, improving performance and retention.

Prioritizing workload-aware HMI design safeguards both people and profits.

How Poor HMI Design Increases Operator Workload

In high-stakes industrial environments, a well-designed Human-Machine Interface (HMI) is crucial for ensuring operator efficiency and safety. Poor HMI design can significantly increase operator workload, leading to errors, decreased productivity, and potential safety hazards. Let's explore how specific design flaws contribute to increased workload:

1. Visual Clutter and Cognitive Overload

Overloading screens with excessive information, unnecessary graphics, or redundant elements can overwhelm operators, making it difficult to focus on critical data.

📌 Insight: A study by the Nielsen Norman Group emphasizes that minimizing cognitive load is essential for usability. They advocate for reducing visual clutter to enhance user performance and satisfaction.

✅ Best Practice: Implement minimalist design principles, using whitespace effectively and displaying only essential information to reduce cognitive strain.

2. Ineffective Navigation Structures

Complex or unintuitive navigation can hinder operators from accessing necessary information promptly, especially during emergencies.

📌 Insight: An article on Control Engineering highlights the importance of eliminating visual clutter and simplifying navigation to reduce cognitive load, thereby improving operator response times.

✅ Best Practice: Design flat, consistent navigation hierarchies with clear labels and logical groupings to facilitate quick access to critical functions.

3. Misuse of Color and Animation

Inconsistent or inappropriate use of colors and animations can confuse operators, leading to misinterpretation of information.

📌 Insight: Research published in the International Journal of Engineering Research and Applications advises against using bright backgrounds and excessive animations in HMI design, as they can distract operators and obscure important data.

✅ Best Practice: Adopt standardized color codes (e.g., red for alarms, green for normal operations) and use animations sparingly to highlight changes without causing distractions.

4. Alarm Fatigue and Data Overload

Excessive alarms or poorly prioritized alerts can desensitize operators, causing them to ignore or miss critical warnings.

📌 Insight: A white paper by Exida discusses how alarm flooding can lead to alarm fatigue, increasing the risk of operators overlooking essential alerts during critical situations.

✅ Best Practice: Implement alarm management strategies that prioritize alerts based on severity and relevance, reducing unnecessary notifications and focusing operator attention on critical issues.

Addressing these common HMI design pitfalls is not just about improving user experience; it's about enhancing safety, efficiency, and reliability in industrial operations. By focusing on human-centered design principles, organizations can reduce operator workload and mitigate risks associated with human error.

Principles of Operator-Centric HMI Design: From Overload to Clarity

Designing an HMI that truly supports its users, especially in high-pressure industrial settings, means focusing not on aesthetics alone, but on clarity, usability, and human cognitive capacity. Here are five foundational principles that guide operator-centric HMI design:

1. Simplicity and Minimalism

Simplicity is the cornerstone of effective industrial HMI design. Minimalist interfaces reduce cognitive overload by stripping away nonessential elements and spotlighting key operational data.

👉 Design interfaces that remove visual noise, reduce clutter, and surface only mission-critical information to enable faster comprehension.

Why it matters: Overloaded screens lead to operator fatigue and errors. Simplicity supports quicker, more confident decisions.

A clean, minimalistic dashboard that demonstrates how focusing on one central metric, like step count, can eliminate clutter and drive user clarity. A strong analogy for how industrial HMIs should spotlight key operational data.

2. Visual Hierarchy and Prioritization

Operators must quickly grasp what’s most urgent. A clear visual hierarchy—created through layout, font size, color, and grouping—helps operators prioritize actions instinctively.

👉 Use size, position, and emphasis to draw attention to critical information first.

Why it matters: In emergencies, hesitation can be costly. Critical cues should never get lost in the noise.

Overcrowded interfaces with inconsistent visual hierarchy can overwhelm users and bury essential information. This financial dashboard highlights how poor prioritization can make quick, accurate decisions harder for the user.

3. Contextual Navigation and Drill-Down Design

Good HMI navigation supports both overview and detail. Shallow, intuitive navigation allows operators to stay focused while exploring deeper data when needed.

👉 Provide high-level dashboards with optional drill-down paths, reducing information overload while supporting investigative workflows.

Why it matters: If it takes five clicks to get to vital data, the interface is doing more harm than good.

A well-designed HMI dashboard, like the one shown, offers high-level insights with modular components that allow users to drill down without losing context. This approach reduces clutter and supports data-driven decisions efficiently.

4. Smart Color Usage and Visual Contrast

Color should enhance clarity, not distract. Effective HMI design uses color strategically to signal status, urgency, and groupings—never decoratively.

👉 Follow consistent color standards and ensure contrast for readability under diverse lighting and visibility conditions.

Why it matters: Misused color in HMI can mask critical alerts or confuse users, leading to costly oversights.

5. Accessibility and Inclusive Design

Operators vary in visual, physical, and cognitive abilities. An inclusive HMI adapts to all users, new hires, veterans, and everyone in between.

👉 Use legible fonts, clear icon-text pairings, and alternative interaction options to ensure the system works for all.

Why it matters: A one-size-fits-all approach can exclude key users, risking both performance and safety.

Inclusive HMIs provide intuitive access for all users, regardless of experience or ability. Large touch targets, readable text, and clear layout make the interface accessible and usable across diverse user groups.

 Dig in more to read more about the role of accessibility in UI/UX design and the concerned regulations :

📝UX in the Age of Compliance: What the DMCCA Means for Enterprise Design in 2025

📝Design methodology for digital UI UX accessibility

📝Top 5 Reasons Why Your Website Should be WCAG Compliant

📝Balancing Aesthetics and Accessibility in UI/UX Design

📝How to Design UX/UI for the European Accessibility Act

📝7 actionable steps to ensure ADA compliance of your website

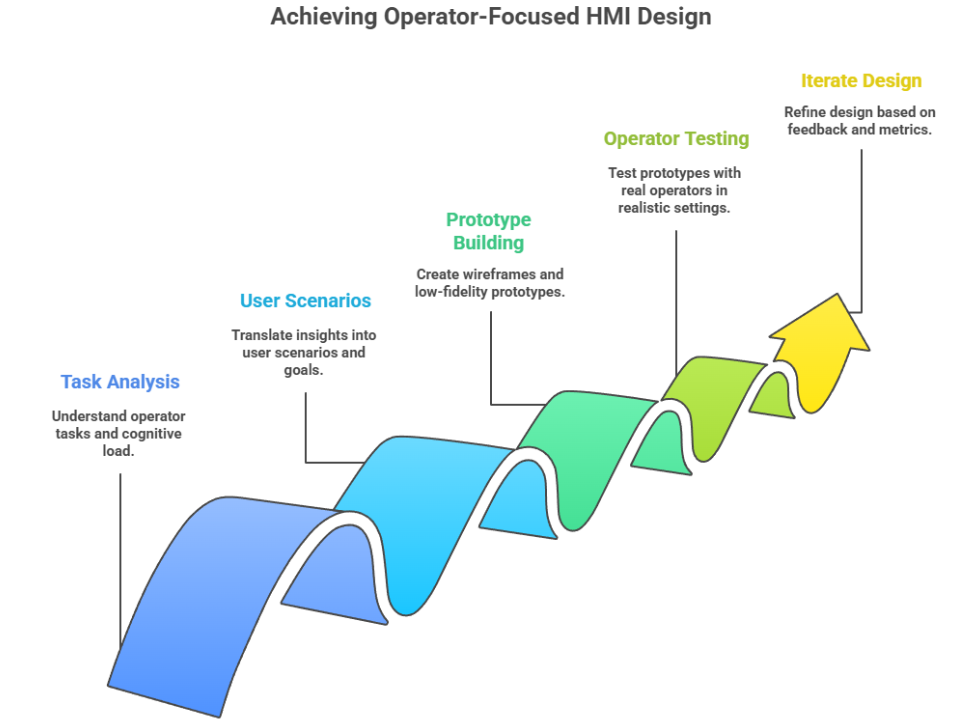

Designing with the Operator in Mind: A Step-by-Step Approach

Operator-focused HMI design doesn’t happen by accident—it’s a deliberate, iterative process grounded in human factors, real-world constraints, and continual user validation. Here’s how to build HMIs that truly support the people who rely on them every day:

Step 1: Conduct Task and Cognitive Load Analysis

Start by understanding what operators do, how they think, and where friction occurs.

• Map out high-risk tasks and decision points.

• Use cognitive walkthroughs and workload models (like NASA-TLX) to assess mental effort.

🎯Goal: Identify which tasks create overload, and where clarity is most critical.

Step 2: Create User Scenarios and Interface Goals

Translate operational insights into personas, usage contexts, and HMI objectives.

• Define key operator needs (e.g., alarm response, process confirmation, fault detection).

• Establish interface goals aligned with safety, efficiency, and accuracy.

🎯 Goal: Ensure design decisions support real-world operator behavior, not assumptions.

Step 3: Build Wireframes and Low-Fidelity Prototypes

Before diving into visuals, sketch and prototype core workflows.

• Use grayscale wireframes to test screen structure, navigation, and content grouping.

• Focus on layout clarity, not aesthetics.

🎯Goal: Validate information architecture and reduce risk early.

Step 4: Test with Real Operators

No interface is complete without user feedback. Test prototypes with actual operators in realistic settings.

• Use usability tests, eye-tracking, and think-aloud protocols.

• Observe how they respond to alarms, navigate screens, and interpret visuals.

🎯Goal: Reveal friction points and measure cognitive load under pressure.

Step 5: Iterate Based on Feedback and Metrics

Use feedback and performance data to refine your design.

• Improve layout, language, and alerts based on real-world behavior.

• Measure success through KPIs like response time, task accuracy, and satisfaction.

🎯Goal: Evolve the design into a tool operators trust—because it works the way they do.

Technology Tools to Aid Operator Workload Optimization

Optimizing operator workload isn’t just about good design—it’s also about leveraging the right technology. From smart SCADA systems to human factors analytics, here are the tools that make workload-aware HMI design practical and measurable:

🖥 SCADA/HMI Software with High-Performance HMI (HP-HMI) Capabilities

Modern SCADA and HMI platforms are increasingly built with HP-HMI principles in mind. These tools offer:

• Simplified, context-aware screen building

• Alarm rationalization features

• Consistent color standards and dynamic object libraries

Popular tools: AVEVA System Platform, Ignition by Inductive Automation, GE Digital iFIX

▶️ Benefit: Accelerates the creation of clean, operator-focused interfaces with built-in best practices.

A real-world example of a High-Performance HMI using AVEVA System Platform. Interfaces like these support situational awareness, streamline decision-making, and reflect ISA-101-aligned design patterns.

Source: AVEVA System Platform – industrial-software.com

👁 Eye-Tracking, Heatmaps, and Usability Testing Tools

To truly understand how operators interact with an interface, use tools that measure attention and behavior.

• Eye-tracking reveals visual scanning patterns and points of confusion

• Heatmaps show which areas attract attention—or get ignored

Tools like Tobii Pro, UXtweak, or Lookback can assist

▶️ Benefit: Brings data-driven clarity to interface testing and redesign efforts.

Using eye-tracking tools like Tobii, designers can analyze real-time gaze patterns and attention hotspots to identify UI friction, overload zones, and overlooked content.

Source: Tobii Eye-Tracking Starter Kit – tobii.com

🤖 AI-Powered Dashboards and Alert Management Systems

Artificial intelligence can help reduce cognitive overload by:

• Filtering noise from alarm systems

• Highlighting priority alerts based on context

• Predicting issues before they arise using machine learning

 Examples: Honeywell Forge, Siemens MindSphere, DCS-integrated AI modules

▶️Benefit: Supports proactive decision-making and reduces alarm fatigue.

Designing for Those Who Keep the System Running

Throughout this blog, we've explored why operator workload isn’t just a UX challenge—it’s a business-critical priority. Poor HMI design can lead to alarm fatigue, decision delays, and even catastrophic failures. But with the right design principles—simplicity, clarity, hierarchy, and inclusiveness—you can turn complexity into confidence.

Why Operator Workload Is the Heart of Good HMI

HMI design is not just about screens; it's about people who rely on those screens to make split-second decisions. When we reduce visual clutter, streamline navigation, and test designs with real operators, we build systems that don’t just function—they perform under pressure.

Designing for workload is designing for resilience, safety, and sustained performance.

Redesign with Empathy and Evidence

If you’re building or evaluating industrial interfaces, now’s the time to act.

✅ Start with a cognitive load assessment.

✅ Engage your operators in testing.

✅ Align your tools with standards like ISA 101 and NUREG-0700.

Redesign your HMI with empathy—and back it with usability data. Your operators, your systems, and your bottom line will all thank you.
