What Makes a Dashboard Design “Good”? 12 Usability Signals You Can Spot in a Minute

The first five seconds reveal the truth: Is your dashboard guiding decisions or generating doubt?

Dashboard design is one of the most requested features in business today. Companies want a simple screen that brings all their important data together, shows trends, highlights risks, and keeps everyone updated. More importantly, they want a dashboard that helps them make better financial decisions, and that’s where thoughtful dashboard design principles make the difference.

Effective dashboard designs turn too much information into clear insights at a glance.

Research consistently reinforces the stakes:

• Forrester reports that every $1 invested in UX can return up to $100 in value (9,900% ROI).
• 88% of users will not come back after a bad digital experience.
• 94% of first impressions are design-related.

This means dashboard UI UX design directly affects trust, user adoption, and the quality of decisions people make.

So how can you tell if a dashboard is merely functional or truly exceptional?

Let’s look at the 12 usability signals that make the difference.

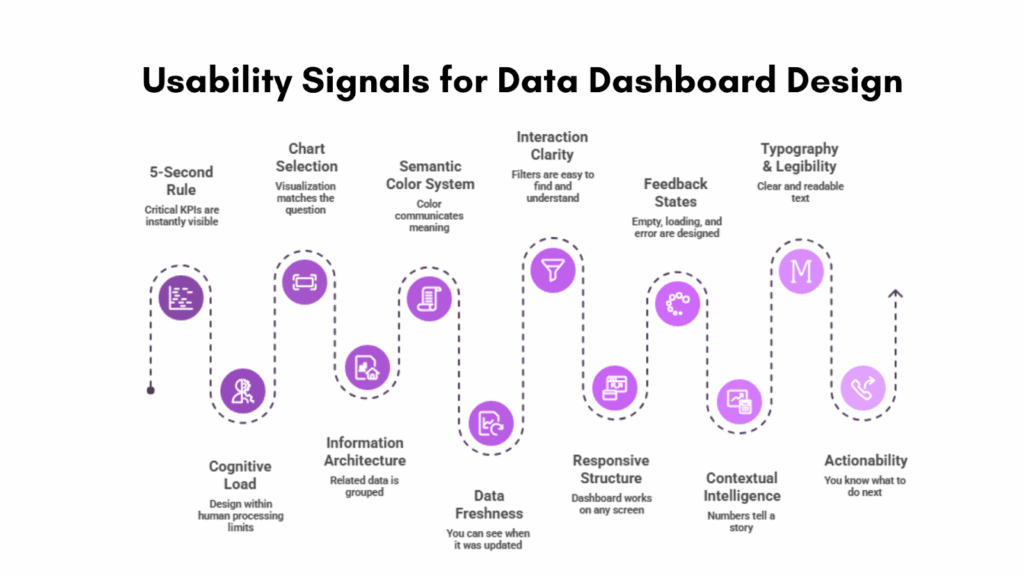

12 Usability Signals That Strengthen Data Dashboard Design Principles

1. The 5-Second Rule: Critical KPIs Are Instantly Visible

When you open a dashboard, you should see the most important metric immediately. You should not search for it. Within five seconds, your attention should settle on the primary KPI.

This principle is grounded in research on visual perception. Eye-tracking studies show that users scan digital interfaces in predictable patterns, typically starting from the top-left area and moving horizontally before scanning downward.

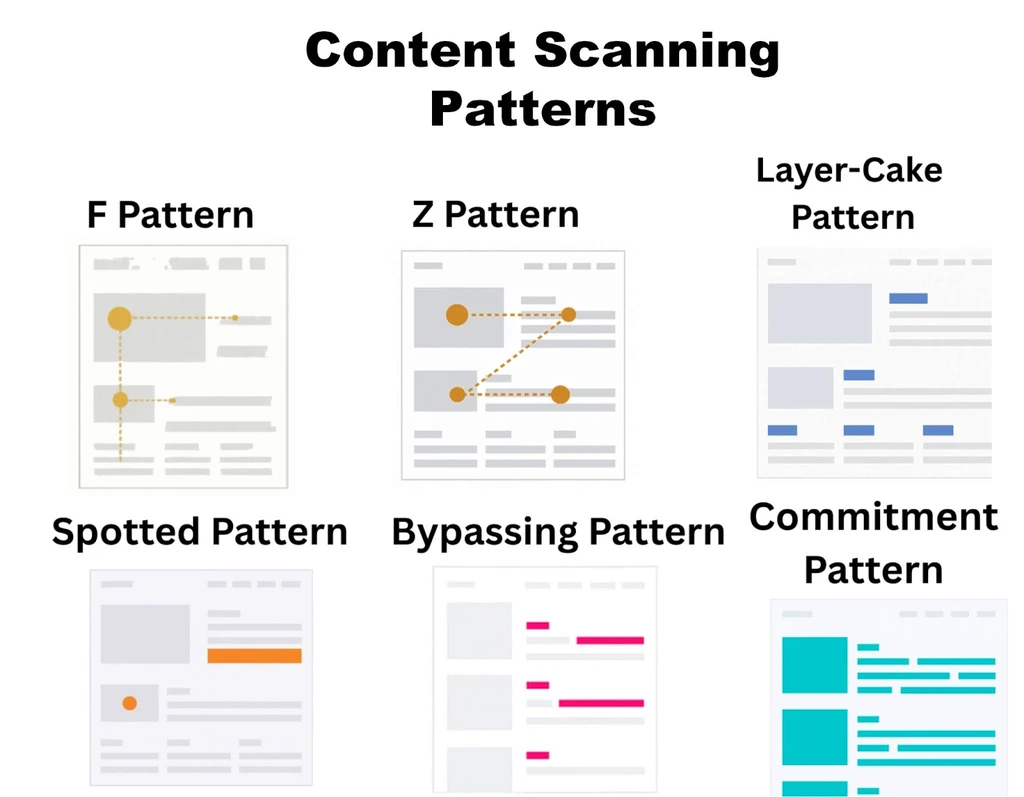

These F- and Z-shaped patterns are consistent across web interfaces. Strong dashboard design principles respect this behavior and place the most important metric where attention naturally begins.

Effective hierarchy is created through deliberate, measurable choices:

• The primary KPI is significantly larger than the surrounding metrics. A clear typographic scale difference allows the brain to prioritize instantly.

• It is placed in a high-attention zone, usually top-left or top-center, where scanning begins.

• It uses stronger visual contrast than secondary elements and meets accessibility standards such as WCAG for readable contrast ratios.

• It has enough white space around it to stand apart.

When every widget is the same size, color, and density, users cannot quickly determine importance. This increases cognitive effort. Users spend time identifying what matters before they can begin interpreting it.

A dashboard usability reduces that effort. It guides the eye and structures attention. It ensures that users understand what is critical without conscious analysis.

If you can open the dashboard and instantly identify the metric that defines performance or risk, the hierarchy is working. If you cannot, the design is adding cognitive load before analysis even begins.

2. Cognitive Load: Design Within Human Processing Limits

Your brain has limits. Cognitive load is the amount of information you can process at one time.

In 1956, psychologist George A. Miller published research suggesting that people can hold roughly seven items in working memory at once. More recent cognitive science refines that number downward in many contexts, often closer to four meaningful chunks.

When you open a dashboard that displays 25 or 30 KPIs at the same visual level, your brain does not become more informed. It becomes overloaded. Instead of analyzing performance, you begin searching for something familiar to anchor your attention.

Strong dashboard UX design respects this boundary:

• It limits the primary view to 3–7 primary metrics.

• It uses progressive disclosure to provide deeper data through drill-downs, filters, and secondary views.

• It avoids data dumping on a single screen.

In practical data dashboard design, this means you should be able to count the core metrics at a glance. You should understand the overall state without scanning every corner of the screen.

3. Chart Selection: The Visualization Matches the Question

A chart is a thinking tool. Its purpose is to help you understand the data quickly and accurately. The chart you choose should always match the question you are trying to answer.

 →If you want to show movement across time, use a line chart.
→ If you want to compare values across categories, use a bar chart.
→ If you want to explore how two variables relate, use a scatter plot.
→ If you want to show proportion within a small set, use a pie chart.

When the chart matches the task, understanding happens naturally. Your attention flows directly to the insight without unnecessary mental effort.

Statistician Edward Tufte introduced the concept of the data-ink ratio: every visual element should serve a purpose. Lines, labels, and shapes exist to communicate data. Decorative shadows, 3D effects, or unnecessary styling add noise without adding meaning.

Strong data visualization usability prioritizes clarity over decoration. It removes distractions, reduces errors, and allows you to think faster. A well-chosen chart helps you make sense of them immediately.

4. Information Architecture: Related Data Is Grouped

People naturally assume that items placed near each other are related. This idea comes from Gestalt’s principles of perception, especially the principle of proximity. Our brains organize information visually before we consciously analyze it.

When related metrics are scattered across different parts of a dashboard, you are forced to piece the structure together on your own. That mental reconstruction slows you down and increases mistakes.

Dashboard design organizes related metrics into clear, intuitive zones:

• Financial metrics in one zone
• Acquisition metrics in another
• Engagement indicators together

Whitespace separates these sections so they feel distinct. Clear labels define what each group represents. Card layouts stay consistent, so the structure remains predictable.

When grouping is done well, the organization feels obvious. You can glance at the dashboard and understand how everything fits together. When grouping is unclear, the screen feels scattered and harder to interpret.

5. Semantic Color System: Color Communicates Meaning

Color is one of the fastest signals your brain processes. You notice it before you read a label. That speed makes it powerful, and it also makes it sensitive. When color carries meaning, you rely on it instantly.

In a well-designed dashboard, color follows a clear system:

• Red signals risk, loss, or decline.
• Green signals growth, improvement, or positive movement.
• Neutral tones represent stable or baseline states.

The meaning stays the same across every chart, every widget, and every screen. You should not have to pause and relearn what a color represents. When red means risk in one chart, it should carry the same meaning everywhere else. Consistency builds confidence because you start recognizing patterns without conscious effort.

Accessibility is part of this responsibility. Approximately 8% of men experience some form of color vision deficiency. A clear dashboard supports them by pairing color with labels, icons, or directional indicators. The message should remain clear even if color perception varies.

Color is a visual language. When you use it with discipline and consistency, it strengthens clarity and supports quick decisions.

6. Data Freshness: You Can See When It Was Updated

A dashboard must tell you how current the data is. When that information is missing, uncertainty begins immediately. You start wondering whether the numbers reflect the present situation or an earlier state. That hesitation affects every decision that follows.

Data dashboard design includes:

• A visible refresh indicator placed where you can easily notice it

• A human-readable timestamp such as “Updated 12 minutes ago”

• Clear status messaging when data is delayed, syncing, or temporarily unavailable

The wording should feel direct and understandable. You should not need to decode technical system language to know whether the data is current.

When you can see exactly when the information was last updated, you feel more confident acting on it. Transparency strengthens trust. Clear timing signals show respect for the person relying on the dashboard to make decisions.

7. Interaction Clarity: Filters Are Easy to Find and Understand

Filters guide how you see the data. You should notice them immediately and understand what they control without searching for instructions.

According to usability principles popularized by Jakob Nielsen, recognition should replace recall. Users should not rely on memory to operate an interface. The system should make options, states, and selections visible at all times.

Dashboard usability applies this clearly:

• Filters are placed close to the data they affect
• Date selectors are clearly visible and easy to adjust
• Active filters are always displayed so you know the current context

You should not have to remember which region, time range, or segment you selected earlier. The dashboard should show it to you. When the current state is visible, you stay focused on interpreting the data.

Clear filters reduce friction. They keep you oriented and strengthen confidence in the numbers you are seeing.

8. Responsive Structure: The Dashboard Works on Any Screen

More than half of global web traffic comes from mobile devices. Your dashboard will be opened on phones, tablets, laptops, and large monitors. It needs to work well on all of them.

Responsive dashboard layout best practices focus on structure.

• Reprioritize content on smaller screens so the most important metrics appear first

• Stack modules in a logical vertical flow that follows natural reading order

• Ensure charts remain legible without forcing zoom or horizontal scrolling

• Provide touch-friendly interaction zones with adequate spacing and tap targets

On smaller screens, hierarchy becomes even more important. Users should still understand performance within seconds. They should not zoom in, rotate their device repeatedly, or struggle to tap controls.

Responsiveness protects usability beyond the desktop. It ensures clarity, access, and control wherever the dashboard is opened.

9. Feedback States: Empty, Loading, and Error Are Designed

Most dashboards are designed around the ideal situation where data is always available, systems respond instantly, and every chart displays complete and accurate values.

In reality, usage conditions are rarely perfect. Data can be delayed, APIs can respond slowly, filters can return no results, and connections can fail. These scenarios are normal in live environments and should be expected.

Dashboard UX design explicitly designs these states:

• An empty state explains clearly what happened. For example, “No sales data for the selected period.” If helpful, it guides the next step, such as adjusting the date range.
• A loading state shows visible progress so users know the system is working. It reassures them that the data is being retrieved.
• An error state communicates the issue in plain language and suggests what to do next when possible.

This level of clarity reflects UX maturity. Designers map every possible state a widget can enter, including loading, loaded, empty, error, and partial data. Each state is intentionally designed.

When every state is accounted for, users feel informed and in control. When states are ignored, trust declines. A reliable dashboard communicates status at all times.

10. Contextual Intelligence: Numbers Tell a Story

A number by itself does not inform you. It only states a value.

When you see revenue of 84,000 on a dashboard, the first instinct is to interpret it. You immediately wonder whether it is higher than last month, whether it meets the target, or whether it reflects improvement or decline. If the dashboard does not answer these questions, you are required to pause, compare reports, or calculate differences yourself.

Well-designed dashboards build context directly into the metric so you do not have to calculate or compare manually. This usually includes:

• Percentage change from a previous period
• Comparison against a defined target
• Benchmarks or industry references
• Clear trend indicators over time

When context is visible, you understand performance immediately. You do not need separate reports or mental calculations. The dashboard supports faster and more confident decisions because the meaning of the number is already clear.

11. Typography & Legibility

Typography is an infrastructure in data dashboard design. It carries the information users rely on to make decisions.

Effective dashboard layout best practices include:

• Minimum 16px for body text so numbers and labels can be read comfortably

• Clear contrast ratios that make text visible in all lighting conditions

• Consistent type hierarchy so users instantly understand what is primary and what is secondary

• Avoiding truncated labels that hide important context or force guesswork

If you need to zoom to read a metric, pause to decipher a label, or strain to distinguish text from its background, the design is not supporting the user. Legibility is the foundation of clarity.

12. Actionability: You Know What to Do Next

The final test is practical.

When you notice a spike, a drop, or an unusual pattern, you should know what to do next. Insight should move naturally into action.

Dashboard UX design connects information to workflow:

• Drill down into segments to understand what is driving the change

• Navigate directly to related reports or detailed views

• Trigger next steps such as assigning tasks, exporting data, or adjusting parameters

A dashboard that only displays numbers leaves the job unfinished. Users should not copy values into another tool or search for the next screen. The path forward should be visible and immediate.

A well-designed dashboard makes performance clear. A well-structured one also makes response clear.

How Aufait UX Builds Effective Dashboards

Our expertise in dashboard UX design is proven these principles in action. For Roca, a global leader in bathroom solutions, our team faced a complex challenge: their legal and finance teams in India were struggling with scattered compliance data, missed deadlines, and fragmented case tracking across multiple units.

Here’s how our team solved it:

1️⃣ Discovery First: Understanding the Users

Every dashboard we create starts with understanding who will use it, under what pressures, and for what decisions. For Roca, the challenge was legal and finance teams were handling dozens of tax and compliance notices across multiple factories and business units without a reliable system, relying on fragmented spreadsheets.

Our UX experts conducted contextual research to uncover:

• The typical workflows for handling compliance notices
• Pain points such as missed deadlines and unclear case progress
• Knowledge levels across users and regions

By mapping these insights, we ensured that every dashboard element served a real user need. Metrics were chosen based on relevance, avoiding clutter and unnecessary complexity.

👉 Expert Insight: Only 55% of organizations conduct formal UX testing. At Aufait UX, every project includes user-centered research because it drives clarity, efficiency, and adoption.

2️⃣Structure First: Organize Before You Style

Once the user needs were clear, our designers focused on structure before visuals. We built the Roca dashboard skeleton to define:

• Logical grouping of data: open cases, upcoming hearings, overdue notices, and recent activity logs

• Drill-down paths and advanced filters: view by business unit, assigned handler, or issuing authority

• Hierarchy and visual flow: what appears first, what’s secondary, what signals urgency

By prioritizing structure, we created a foundation that supports decision-making, rather than forcing users to decode layout or search for information. Only after this skeleton was solid did our designers layer on branding, color, typography, and custom UI components, ensuring a familiar and consistent experience aligned with Roca’s identity.

👉 Our Expertise: We replace generic enterprise elements with custom design systems, balancing visual polish with usability. Every card, button, and form field is intentionally crafted to reduce friction.

3️⃣Iteration, Measurement, and Continuous Refinement

Dashboards are not static deliverables. They evolve with the business. For Roca, we implemented:

• Usage tracking of dashboard widgets
• Removal of underutilized elements
• Periodic usability testing and hierarchy reassessment

This iterative approach ensures that as workflows or business priorities change, the dashboard adapts without losing clarity.

Our Authority: This continuous refinement process turns dashboards into decision accelerators, maintaining clarity even as complexity grows.

By combining research-driven design, structured architecture, and iterative refinement, our UX experts ensured that the dashboard was a strategic operational platform.

✅The 60-Second Dashboard Audit

Open any dashboard. Give yourself one minute. You do not need analytics expertise for this. You only need to observe how it feels to use.

Ask yourself:

✔️Can you identify the most important metric within five seconds?

✔️Are fewer than eight core KPIs visible on the main screen?

✔️Does each chart clearly match the question it is meant to answer?

✔️Is color used consistently, with stable meaning across the interface?

✔️Can you immediately see when the data was last updated?

✔️Are filters easy to find and clearly labeled?

✔️Does the layout work smoothly on a smaller screen?

✔️When there is no data, does the dashboard explain why?

✔️Does every key metric include context such as comparison, target, or trend?

✔️Is the text readable without zooming or leaning closer to the screen?

✔️When something changes significantly, do you know what to do next?

Open your current dashboard and apply this 60-second audit. Notice where you hesitate and where you have to think harder than necessary.

Those moments are design signals.

If your dashboard feels crowded, unclear, or difficult to act on, it is a structural problem.

At Aufait UX, a leading UI UX company, we partner with product teams, data teams, and business leaders to transform complex reporting environments into structured, usable, action-oriented dashboards. Our work is grounded in UX research, cognitive principles, and real user behavior. Every metric, every chart, and every interaction is designed to reduce friction and strengthen clarity.

Our expertise covers:

 🔸 User research to identify real decision points
🔸 Information architecture that defines structure before styling
🔸 Dashboard layout best practices grounded in usability science
🔸 Data visualization usability rooted in clarity and purpose
🔸 Building AI-ready UX layers that foster transparency and trust

👉 Explore Our Dashboard Design Services

Let’s turn your dashboard into a decision-driving system that boosts adoption, builds trust, and accelerates smarter business outcomes. Connect with our dashboard UX experts today.
