Dashboard UI Design vs Dashboard UX Design: What’s Actually Different And Why It Matters

Repainting the walls won’t fix a broken foundation. Let’s untangle the real difference between dashboard UI vs UX design before you draw a single frame.

I’ve sat in enough project kickoffs to know how this goes.

A few years ago, I was reviewing a dashboard that had been in production for about six months. The product manager opened his laptop, pulled up the interface, and said, “Vijesh, the UX is off. Can we make it look a bit more premium?”

I pause. I ask him what he means by UX.

He points at the chart colors. The charts feel cluttered, and the color palette looks dated. Then two minutes later, a stakeholder joined the same call and said, “The UI is confusing our users”, and what they actually meant was: users can’t find the numbers they need to make decisions. He’s describing a structural problem and calling it a UI problem.

This is the confusion I want to untangle, specifically in the context of dashboard design, where getting the distinction wrong produces a dashboard that nobody trusts, nobody uses, and eventually nobody opens.

So let’s get this right.

The Real Difference Between Dashboard UI Vs UX Design

I’ll keep this short before we go deep.

Dashboard UX design is the thinking work. It is everything that happens before the screen looks like anything, understanding who uses this dashboard, what questions they’re actually trying to answer, and what information matters most. And how that information should flow so that a person can open the dashboard and immediately understand their situation.

Dashboard UI design is the execution work. It is what those decisions look like on screen. The colors, the typography, the card layouts, the spacing, the icons. It is how the thinking becomes visible.

One is the foundation. The other is what you build on it.

And like any building, problems with the foundation don’t get fixed by repainting the walls.

And here is the thing I want you to hold onto through everything that follows. When teams confuse the two, they apply the wrong fix. The dashboard gets redesigned.

Let me take a step back for a moment and walk you through the bigger picture of dashboard UX design.

What Dashboard UX Design Actually Involves

1. User Research

User research and interviews come first. Actual conversations with the people who will open this dashboard every day. What decisions do they make? What data do they currently rely on? Where do they waste time? The most important shift that research forces is a change in the question being asked.

When I first began designing a few years ago, the instinct was always to ask what we should show. The better question, the one that changes everything, is what this user is actually trying to figure out. Those two questions lead to completely different dashboards.

2. Priority Mapping

Once you know what the user is trying to figure out, the UX research leads directly to the hardest part of dashboard UX design: deciding what actually matters most.

Not every metric deserves equal attention, even if every stakeholder thinks theirs is the most important.

Part of the UX process is separating what users need to see immediately from what’s simply good to know. That is the cognitive load associated with the UX design process.

My Note:

Deciding what goes at the top of a dashboard is a product decision. Design can express the hierarchy, but it can’t create one where none exists. When teams skip this alignment and jump straight to design, dashboards end up showing everything at equal weight, which is the same as showing nothing clearly.

3. Layout

After user research and priority mapping, the layout work begins. And I want to be precise about what layout means at this point in the process.

When I say layout, most designers I have worked with, myself included, early on, jump to visual structure too quickly. This is not about which grid system to use or how much padding to apply between cards. It tells you where the most critical information should sit. What does the user need to understand in the first three seconds? What can live deeper, visible only when needed? These decisions come directly from what the research revealed.

Here is the idea I keep coming back to, project after project.

A good dashboard design layout tells a story. The user opens it, and the information flows in a sequence that matches how they think about the problem, such as current state first, context next, and detail available on demand.

When the layout follows that narrative, cognitive load drops. The user is not assembling a picture from scattered data points across the screen. The dashboard is doing that work for them.

And then there is the question that needs to be asked before any of this layout thinking begins.

Who is this dashboard design actually for?

I push on this question on every project because if the answer involves multiple types of users, say, an executive who needs a weekly summary and an operations manager who needs real-time alerts, one dashboard trying to serve both will almost always compromise for both. The better answer is either separate dashboards tailored to each user type, or a configurable dashboard that lets users see what’s relevant to their role.

Designing one layout that works for everyone usually ends up working well for no one.

4. Wireframes

This is where I start stress-testing the structure.

Wireframes aren’t meant to look good. Their job is to check whether the hierarchy works and whether the dashboard answers the right question fast enough.

Keep wireframes rough on purpose. Roughness keeps the room focused on structure. And structure is the only conversation that matters here.

The best wireframe I have ever seen was drawn on a whiteboard in forty minutes. It was boxes, labels and arrows. It answered every structural question the project needed answered. It saved weeks of rework that would have happened if the team had gone straight into high-fidelity design without it.

Nobody photographed it for a portfolio. It did its job, and that was enough.

5. Usability Testing

This is usually the most humbling part of the process. It is also the most valuable. Usability testing is the moment the team finds out which of their assumptions were wrong.

I’ve seen layouts that looked perfectly logical to the design team confuse users within seconds. People bring their own mental models, habits, and expectations. Testing is how we find the gaps before the dashboard reaches production.

I have sat in testing sessions where a user completely ignored the element the entire team had spent two weeks perfecting, and spent all their time trying to find something buried three levels deep because they needed it far more often than anyone anticipated. Those sessions are humbling. They are also the most useful hours in the entire project.

Test before you ship. The cost of a usability testing session is a fraction of the cost of redesigning something that has already launched.

6. Continuous Optimisation

I never treat launch as the finish line.

The dashboard that ships on launch day is built around how the business works today. Six months from now, that will have changed. New priorities will have surfaced. Metrics that mattered most at launch will have shifted in importance. The users themselves will have evolved in how they work and what they need.

Continuous optimisation is the part that gets cut most often and matters more than teams realise. User needs evolve, business priorities shift, and a dashboard that isn’t revisited regularly becomes a liability.

That’s why I see launch as a milestone. A dashboard is a living tool. It needs to be revisited, reviewed, refined, and improved continuously so they stay useful long after release.

One Last Thing About Simplicity

Before we move on, I want to address what comes up on almost every dashboard project I have been part of.

When a team decides a dashboard needs to feel simpler, the first instinct is almost always to remove things. That is not simplicity. That is subtraction without thinking.

Simplicity in a dashboard isn’t about showing less. A dashboard can carry a significant amount of data and still feel easy to use, as long as that data is organised in a way that matches how users think about the problem, labelled precisely, and structured so that the most important thing is always the most obvious thing. The goal is to make less effort to understand them.

Where Dashboard UI Vs UX Design Blur, The Most Important Handoff in the Entire Project

I want to pause here before we get into what dashboard UI design actually involves.

Because there is a zone sitting between the UX work we just covered and the UI work coming next, and it is the zone where most dashboard projects silently lose everything that made the UX thinking valuable in the first place.

UX and UI are not two separate phases; you complete one after the other. UX gets completed, the files get handed over, and UI begins. It feels organised, like a proper process. And it is where dashboards lose their hierarchy, their prioritisation logic, and the usability decisions that took weeks of research to establish.

There’s a zone in dashboard design where both disciplines genuinely overlap.

Visual Hierarchy Lives in Both Camps

I have seen it play out more times than I can count.

UX defines the priority: this metric matters more than that one, this alert needs to surface immediately. UI expresses that priority through size, weight, color, and position.

If the UX work establishes that revenue is the most critical metric on a page, and the UI treats it identically to twelve other numbers, the hierarchy has been lost in translation.

Caption: A series of dashboard layouts showing different visual hierarchy patterns, illustrating guiding the user’s eye to key information.

Layout Is Shared Territory Too

Layout is the other place where UX and UI genuinely overlap,  and where the tension between them shows up most visibly.

UX determines the structure, what goes where, what sits at the top, what lives deeper, and what the user needs to see first. UI determines how that structure feels like the grid, the spacing, and the grouping of elements.

These decisions are deeply connected. You cannot make good UI layout decisions without understanding the UX logic behind the structure. And you cannot evaluate UX layout decisions without seeing how they actually feel once the visual system is applied.

A layout that looks clean but doesn’t match how the user thinks about their work is a UI success and a UX failure at the same time.

This is precisely why UX and UI cannot be fully sequential in dashboard work. There has to be an ongoing conversation at this boundary. The best dashboards I’ve worked on happened when the person making structural decisions and the person making visual decisions were either the same person or in constant dialogue throughout the project.

What Dashboard UI Design Actually Involves

So the UX work is done.

You know who the user is. You know what they need to see the moment they open this dashboard. You know the hierarchy, the flow, the story, and the layout that needs to be told.

Now comes the part everyone was waiting for from day one: what is it actually going to look like on screen?

UI picks up from there.

1. Visual Hierarchy

Every dashboard has the most important element. One number, one status indicator, one signal that the user needs to find the moment they open the screen. The entire job of visual hierarchy is to make that element impossible to miss, without the user having to consciously look for it.

When visual hierarchy fails, the user hunts. They scan left, then right, then back across the page, looking for the number that should have been obvious from the first glance. The information is there, but it’s just not communicating.

And here is the thing I want you to hold onto: a dashboard can look genuinely beautiful and still have broken hierarchy. I have reviewed dashboards that were impressive to look at and genuinely painful to use. Because the most critical element on the page was getting the same visual weight as eleven other things around it. Visual polish and visual communication are two completely different things. One does not guarantee the other.

Caption: A visual hierarchy chart showing dashboard design principles like balance, contrast, emphasis, and alignment to guide user attention effectively.

2. Color

Color is where I have the most repeated conversations on dashboard projects. So let me be straightforward about it.

In a dashboard, color is a functional tool before it is an aesthetic one. It signals status, directs attention, and separates categories. It tells the user before they have processed a single label or read a single number, whether a critical issue needs their immediate attention or whether everything is running as it should.

The principles behind how color communicates meaning run deeper than most teams realise, and understanding color theory in design is what separates teams that use color intentionally from teams that use it decoratively.

The mistake I see most consistently is teams softening colors that were chosen precisely because they needed to feel urgent.

Red gets desaturated because it makes the dashboard feel heavy. Amber gets swapped for something warmer because a stakeholder finds it alarming in reviews. And in both cases, the color that was doing a critical job gets quietly removed in the name of making the dashboard feel more comfortable to look at.

The dashboard looks calmer. The user misses the signal. Someone makes a decision based on incomplete information because the visual system that was supposed to alert them was overridden before launch.

I’ve learned that color should serve the user’s ability to act, not the team’s desire to make the dashboard feel more comfortable.

Its job is to communicate clearly, even when the message isn’t comfortable.

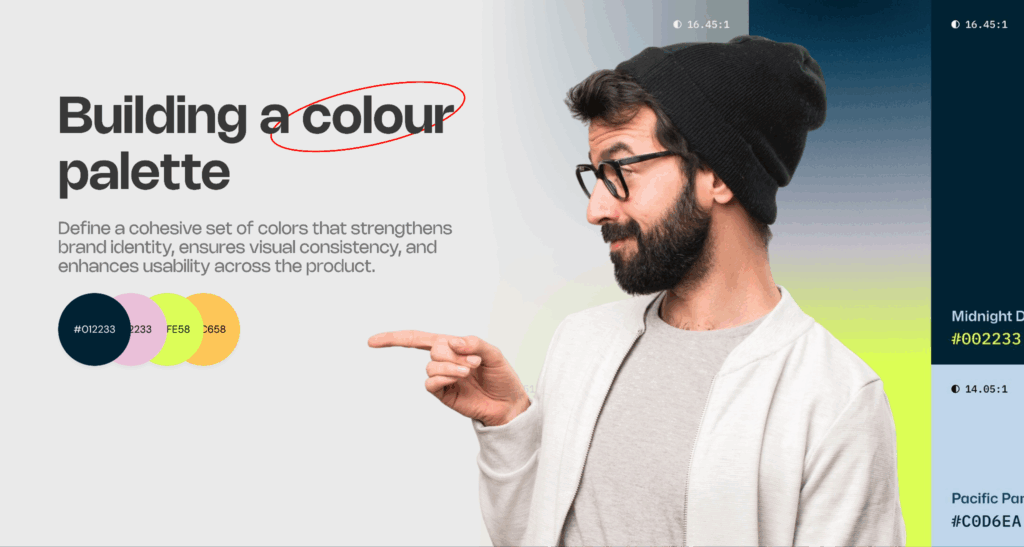

Caption: Color palette displays colored UI elements, demonstrating how functional color guides attention and communicates status in UX design.

3. Whitespace

Every time someone tells me a dashboard feels overwhelming, whitespace is the first thing I check.

Whitespace is what allows the eye to separate elements, group related information, and move across a complex screen without the user feeling like they are being asked to process everything at once. It is what creates separation between elements so the brain can group them, compare them, and make sense of them without effort.

I always say this to clients when this conversation comes up. The information can be right, and the presentation can still make it feel wrong. Whitespace is one of the biggest reasons why.

4. Typography

The precision of a label matters enormously. Vague or ambiguous wording creates doubt, and doubt slows decisions. Type choices around size, weight, and hierarchy directly affect how quickly a user can scan across a page, compare two numbers, and decide what to do next.

Think about a metric labelled “Revenue.” Straightforward enough. Except the user opens it and immediately wonders, ” Is this gross or net? This month or year to date? Actuals or forecast? They have to stop and figure it out before they can do anything with the number.

That pause happens across every ambiguous label on the page, every time someone opens the dashboard.

Caption: Dashboard design showing bold, easy-to-read headings and clear labels that guide users to key information quickly.

5. Icons and Card

I pay a lot of attention to icons and cards because they’re usually the most repeated elements on a dashboard. They appear dozens of times on a single screen. Which means when they work well, nobody notices them, and when they do not, the user feels it constantly.

Good icons reduce reading time by making categories instantly recognisable. Good card design creates consistent containers that users learn to read quickly without re-orienting each time. Poor versions of both add visual noise without adding comprehension.

6. The High-Fidelity Prototype

Everything comes together in the high-fidelity prototype. And I want to be specific about what this stage is actually for, because I think it often gets treated as a final visual sign-off rather than what it really is.

It is the last clear checkpoint to verify that the UI is actually serving the UX decisions made earlier.

This happens more often than teams would like to admit.

Something that was intentionally prominent in the wireframe gets toned down because the color feels too strong. A hierarchy that was clear in greyscale becomes less obvious once the full visual design is applied. A label that was precise gets shortened for aesthetic reasons and loses important context.

Individually, these changes seem small.

But together, they can weaken the structure and clarity that took weeks to get right.

The prototype is where these issues become visible, while there’s still time to fix them before handoff.

My Note:

Dashboard UI follows the same foundational principles as any interface design: alignment, hierarchy, contrast, and direction. There are no special rules unique to dashboards. What’s different is the weight of the consequences. A hierarchy error on a landing page means a user misses a headline. A hierarchy error on a dashboard design can mean someone makes the wrong call based on the wrong signal.

UI vs UX in Dashboard Design, A Quick Side-by-Side

The UI vs UX design debate gets abstract fast. This is the clearest way I know to show where each discipline lives, where they overlap, and why both matter:

What You’re Deciding	Dashboard UX Design	Dashboard UI Design
Who is this for	Defines the user type and their goals	Adapts visual complexity to match user needs
What goes on screen	Decides which metrics matter and why	Expresses those metrics through visual weight and position
Information priority	Maps what matters most through research	Makes the most important thing visually impossible to miss
Layout logic	Structures the flow based on the user’s thinking	Translates that structure into grid, spacing, and grouping
Visual hierarchy	Establishes the priority order	Executes it through scale, contrast, and color
Color decisions	Defines what needs to be signalled	Chooses the colors that carry those signals clearly
Labels and language	Determines what precision the user needs	Writes labels that are unambiguous and scannable
The story the dashboard tells	Decides what story needs to be told	Makes sure the visual design tells the same story
What gets suppressed	Decides what the user does not need upfront	Keeps suppressed content visually subordinate
How it feels to use	Defines the experience goal	Creates the visual conditions that make that experience real

Want to see what these principles look like when they come together on screen?

Take a peek at my real dashboard design examples, the ones that got both the thinking and the execution right.

Everything discussed here lives inside that broader conversation.

Is Your Dashboard Built on UX Thinking or Just UI Execution?

You have read everything above. The UX thinking, the UI execution, the place where both overlap, and the mistakes that happen when teams confuse the two.

Now I want you to think about the dashboard your team is using right now.

The one you are planning to make it live today, the one your operations manager opens every morning, the one your leadership team looks at before every review meeting, the one your analysts rely on to make calls that affect real business outcomes.

Ask yourself honestly,

1. Does that dashboard know the difference between UI and UX?
2. Was it built around what your users are actually trying to figure out?
3. Or was it built around what your stakeholders wanted to see?

Most teams know the answer before they finish reading that question.

Let me tell you what we see when a new dashboard project comes through the door at Aufait UX.

The first conversation we have with a client is about who is going to use it and what they are trying to figure out when they open it. We spend real time in user research before a single wireframe gets drawn.

We map what they are trying to figure out. We establish the hierarchy before we touch the layout and make sure the UI is executing the UX thinking.

And if you’re building or redesigning a dashboard and want both the thinking and the execution done right, that’s exactly the kind of work we do at Aufait UX.

If you found yourself questioning whether the hierarchy is right, whether the right questions were asked before the design began, whether your users are actually getting what they need from it, that instinct is worth following.

Explore our Dashboard Design Services

Or if you want to start by understanding what is actually working and what is not, we offer UX design audits that go beyond the surface and find the real gaps in how your dashboard is serving your users.

Get your Dashboard UX Audit

A dashboard should be the most trusted tool in your team’s daily workflow. If it is not there yet, let us help you get it there. Talk to us.
