Dashboard Design Process Explained: From Requirements to Usable Interfaces

Drowning in data with no clear direction? Discover how the right dashboard design brings past performance into focus, revealing areas for refinement, and guides your next move forward.

The idea of a dashboard comes from cars, where a control panel gives the driver a quick, clear, real-time view of what matters most. When you look at a car dashboard, you don’t see every detail about how the vehicle works. You only see a few key things, like speed, fuel level, and warnings. That’s all you need to drive safely and stay in control.

The same concept applies to digital dashboards. The real challenge in dashboard UX design is how to take a large amount of data and show only what’s essential, at the right time, in a way that helps users take action. The dashboard design process ensures that every decision, from layout and data visualization to usability, that supports this clarity.

As Stephen Few defines it:

“A visual display of the most important information needed to achieve one or more objectives, consolidated and arranged on a single screen so it can be monitored at a glance.”

The key part here is “most important information.” This means a dashboard interface design is about choosing what truly matters and presenting it in a way that is instantly actionable.

In this guide, we’ll explore a user-centric dashboard methodology that walks you step by step through creating dashboards that are intuitive, actionable, and impactful.

You’ll learn how to combine dashboard information architecture, F-pattern vs Z-pattern scanning, and progressive disclosure in UX to design interfaces that users can understand at a glance.

Let’s begin.

What is Dashboard UX Design?

Dashboard UX design is designing interfaces that help you understand data instantly and make better decisions without confusion.

A dashboard is a visual display of essential information needed to achieve specific objectives. It consolidates data from multiple sources into one place and displays it through charts, graphs, tables, and key metrics, so you don’t have to hunt across different tools.

The main purpose of a dashboard is to help you:

🔸Tracking key performance indicators (KPIs) to measure success

🔸Monitoring trends and changes over time

🔸Understanding real-time performance across teams and systems

🔸Making decisions confidently with actionable, clearly presented insights

Why Dashboard Design Impacts Business Decisions?

When your dashboard is designed well, it helps you turn data into insights that you can clearly understand and use in your daily work. Good dashboard interface design transforms raw data into insights that you can act on immediately.

🔻Improved Data Accessibility and Usability

When a dashboard follows dashboard design best practices, complex data becomes easy to read and understand. Metrics are arranged clearly, so you can find what you need without extra effort. This saves time, reduces confusion, and helps you focus on what truly matters.

🔻Smarter, Faster Decision-Making

Effective business intelligence dashboard design brings together real-time data and key metrics in a single view. You can see what is happening and make decisions based on current information. This helps you respond quickly and stay aligned with your objectives.

🔻Performance Tracking and Goal Alignment

Dashboards help you track how your work is performing against your goals. By structuring data using a clear data taxonomy for interfaces, you can monitor key metrics and see whether you are meeting your targets.

For example, a marketing dashboard can show reach, engagement, and conversions, helping you understand how your campaigns are performing and where you need to improve.

👉 Research shows that organizations using dashboards for business intelligence achieve better outcomes from their data. Studies from Dresner Advisory Services indicate that organizations with effective BI tools are more likely to improve decision-making and can achieve up to 24% higher revenue growth.

So now, a question may arise in your mind: What are the 5 stages of the dashboard design lifecycle? Let’s explore the stages that form the backbone of a successful dashboard design process, guiding your team from raw data to actionable insight.

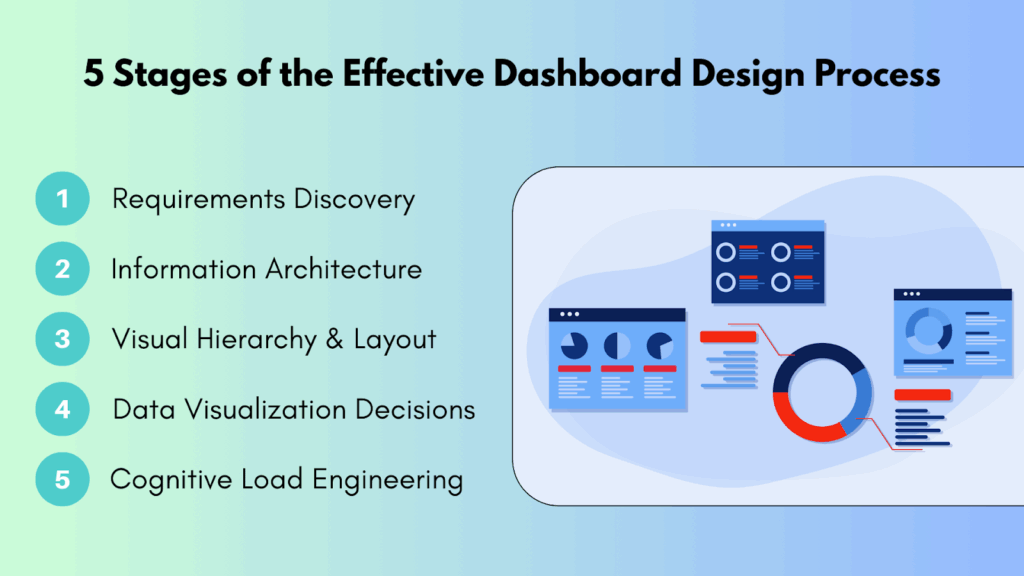

The 5 Stages of the Effective Dashboard Design Process

Designing an effective dashboard is a structured UX design process. Each stage builds on the previous one to ensure that the final product is clear, actionable, and user-friendly.

Stage 1: Requirements Discovery ➛Know Your User & Goal

Every dashboard UX design begins with clarity about what it should do and who it serves. This stage defines the goals, the users, and the decisions your dashboard will support.

The Five Questions You Must Answer

• Who, precisely, uses this dashboard?
  Consider the role, device, and familiarity with data. A mobile user checking updates differs from a data analyst reviewing detailed reports.

• What decision does this dashboard support?
  Focus on the decision. Every metric in your KPI dashboard layout should directly help the user take a specific action.

• How is the dashboard used, and how urgent is it?
  Dashboards used frequently require fast readability; less frequent dashboards can support deeper analysis.

• What are the critical thresholds?
  Define the values that require attention. These thresholds guide alerts, visual cues, and real-time monitoring in your dashboard interface design.

• What should users understand within the first 30 seconds?
  Identify the key insight users must see immediately. Structure your layout around this priority.

💡Designer’s Tip

When you ask users what they need, they ask for all available data. This leads to too many metrics and reduces clarity. Your role is to focus on what they need to decide, not everything they want to see. This principle is essential in cognitive load engineering, where reducing unnecessary information improves understanding and action.

Stage 2: Information Architecture ➛ Structuring Your Dashboard

Once user needs are defined, the next step is building a clear dashboard information architecture. This determines how data is structured, grouped, and navigated, ensuring users can move from overview to detail effortlessly. A strong structure also establishes a clear data taxonomy for interfaces, making insights easier to interpret.

Core Principles:

• Hierarchy: Show data from a high-level overview → category metrics → individual KPIs. Let users drill down for details only when they want. This aligns with how users naturally process information and supports scalable enterprise dashboard UI and SaaS dashboard design.

• Progressive Disclosure: Show the most important information first. Use drill-downs, tooltips, or expandable sections to give extra details without cluttering the main view.

• Grouping: Keep related metrics together, like campaign performance, budget, and ROI. This makes it easier to see the full picture without searching around the dashboard.

• Navigation: Make it easy to move around. Use global navigation for main sections and contextual navigation within sections. Users should always know where they are and how to go to the next step.

Stage 3: Visual Hierarchy & Layout ➛ Make Insights Stand Out

Visual hierarchy controls what users see first and how they scan information. Proper layout ensures that critical insights are noticed immediately.

When someone opens your dashboard, they are scanning it to answer a question. In the dashboard design process, this stage is where you turn structured data into clear, scannable insight.

➡️Visual Weight: Why Some Elements Get Seen First

Not all elements on a dashboard are perceived equally.  Cognitive research on visual perception shows that attention is driven by visual weight, which is influenced by:

• Vertical position: Elements placed at the top are noticed first
• Spatial prominence: Center and left areas receive more attention in left-to-right reading patterns
• Size and scale: Larger elements signal importance
• Contrast and color intensity: High contrast draws immediate focus
• Isolation: Elements surrounded by space stand out more

This means hierarchy is assigning priority to information. In a KPI dashboard layout, critical metrics must dominate attention. If a low-priority metric competes visually with a key KPI, the dashboard interface design fails to support decision-making.

➡️Layouts That Match How People Scan

Dashboards should follow natural scanning patterns revealed by eye-tracking research:

• F-pattern (Analytical dashboards): Used in SaaS dashboard design and enterprise dashboard UI, where users compare multiple data points. Users scan across the top, then across again, and finally down the left side. Place primary KPIs top-left, supporting metrics top-right, and detailed insights below.

• Z-pattern (Summary or executive dashboards): Ideal for business decision-making dashboards where speed matters. Users scan left to right across the top, diagonally down, and across the bottom. This pattern supports quick comprehension and high-level summaries.

💡 A natural question arises here: What makes a dashboard interface usable for executives?

The answer lies in Z-pattern scanning, strategically placed KPI cards, and real-time alerts, which enable executives to grasp insights quickly and make decisions without getting lost in unnecessary details.

Stage 4: Data Visualization Decisions ➛ Choosing the Right Chart for the Right Question

At this point in the dashboard design lifecycle, a question naturally arises: How do I choose the right data visualization for a dashboard? The charts you pick determine how users read, interpret, and act on your data. The right visualization makes trends, comparisons, and patterns immediately clear, while the wrong one can hide insight or confuse your audience.

Always start by asking: “What question does this chart need to answer?” Your choice of chart should directly support that question and the decision the user needs to make.

Which Chart to Use

Chart Type	When to Use It	Why It Helps You
Line Chart	Show trends over time	Let's see the direction and changes clearly
Bar Chart	Compare categories	Makes the differences between values easy to read
Stacked Bar / Donut	Show proportions	Highlights parts of a whole in a simple way
Scatter Plot	Show relationships	Helps spot patterns or correlations between variables
Heat Map	Compare two dimensions	Makes clusters and trends obvious at a glance
KPI Card	Focus on one key metric	Puts the most important number right in front of you

Tips for Clear Charts

• Use consistent scales and axes so numbers are easy to compare.
• Keep labels and numbers readable.
• Avoid unnecessary colors, shapes, or decorations that distract from the message.

How Your Eyes Read Data

• Metrics that are grouped feel connected.
• Simple visuals are processed faster by your brain.
• Elements that stand alone grab attention immediately.

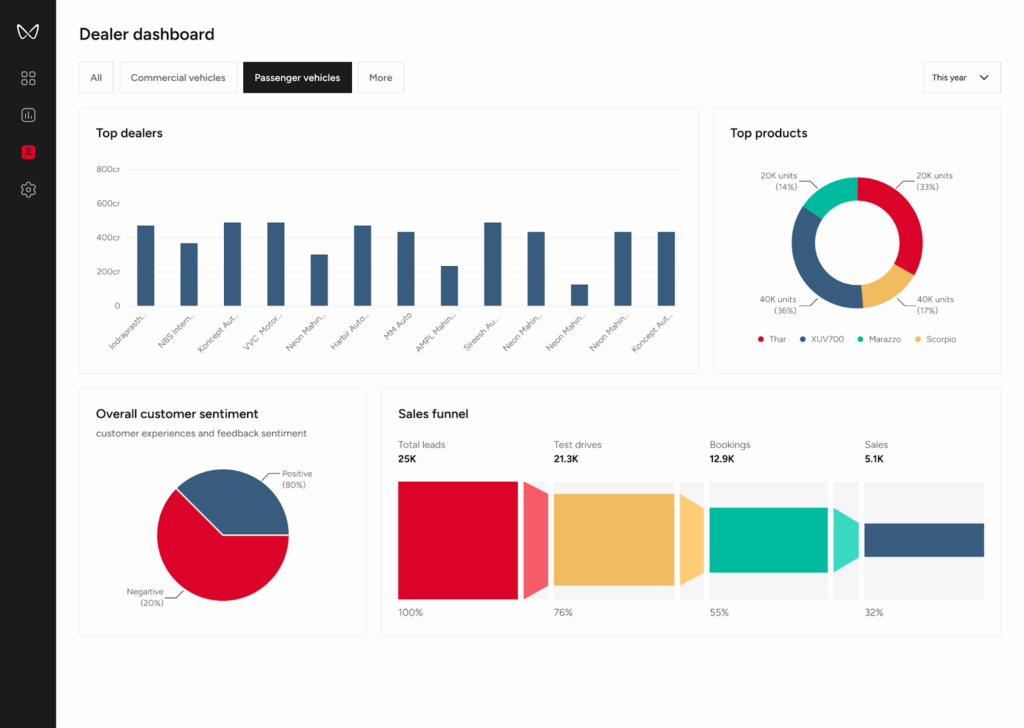

Take a look at one of our recent projects for a global automotive client, where our UX and Power BI experts designed an interactive Dealer Performance Dashboard. The goal was turn complex global sales and dealer data into insights that drive action.

Our design highlighted top-performing dealers, sales trends, and customer satisfaction scores in one easy-to-navigate interface. Dynamic filters allowed teams to explore performance across regions, vehicle models, and time periods, while funnel-based visualisations guided users through lead-to-sale journeys.

We incorporated real-time alerts and live deal updates, helping decision-makers act instantly on emerging opportunities. KPI cards showcased critical metrics like total sales, conversion rates, and service performance, ensuring users see the most important numbers immediately.

By combining purposeful UX design with Power BI’s analytics power, this dashboard transformed raw business data into a clear, actionable tool, enabling global teams to make faster, smarter, and more confident decisions every day.

Stage 5: Cognitive Load Engineering ➛ Making Dashboards Easy to Use

Cognitive load is the mental effort your brain uses to understand information. An effective dashboard reduces unnecessary effort and lets users focus on what matters.

There are three types of cognitive load:

1. Intrinsic Load – Handling Complex Data

Some data is inherently complex, like multi-variable trends, time series, or detailed breakdowns. While you can’t remove the complexity, you can present it clearly:

• Show high-level summaries first to provide immediate context
• Highlight critical metrics using KPI cards
• Allow users to explore details on demand via drill-downs or expandable sections

2. Extraneous Load – Minimizing Design Friction

Extraneous load comes from the dashboard design itself. Any unnecessary elements on a dashboard, like extra colors, confusing charts, unclear labels, or crowded layouts, make it harder to focus on the data. To reduce this effort:

• Limit the types of charts used in one dashboard
• Use color consistently and meaningfully to guide attention
• Provide tooltips for complex metrics instead of crowding the main view
• Maintain clean alignment, spacing, and layout for easy scanning

3. Germane Load – Helping Users Understand and Act

Germane load is the productive mental effort that helps users interpret data and make decisions. Your dashboard should guide users to:

• See the key numbers at a glance
• Understand design trends and changes over time
• Compare values in context
• Know what action the data suggests

Add-On: Prototyping & Usability Testing ➛ Learning from Real Use

Completing the 5 stages gives you a solid framework, but creating a polished mockup is just the beginning.

The real insights come when real users interact with your dashboard. Prototyping and usability testing reveal how easily users find, understand, and act on the data.

Depending on your goals, different types of prototypes can be used:

• Paper prototypes: Quick sketches to test early concepts and workflows
• Low-fidelity digital wireframes: Simple digital versions to evaluate layout, navigation, and basic interactions
• High-fidelity interactive prototypes: Realistic dashboards with sample data to test comprehension, decision-making, and user confidence

This iterative approach lets you gather meaningful feedback quickly, identify friction points early, and refine your dashboard before full implementation.

Usability Testing Methods:

• Think-aloud testing: Ask users to speak their thoughts as they interact with the dashboard. This helps reveal confusion, misunderstandings, and decision points.

• Cognitive walkthroughs: UX designers go through tasks step by step, simulating the user’s journey to spot friction points that users may have adapted to and no longer notice.

By including prototyping and usability testing as part of your dashboard design lifecycle, you ensure that your dashboard is intuitive, actionable, and aligned with real user needs.

With this add-on stage, you now have a comprehensive roadmap from requirements to insights. Next, we’ll explore how to evaluate, optimize, and keep your dashboard performing at its best.

How to Evaluate and Optimize an Existing Dashboard

Creating a dashboard is just the beginning of the dashboard design process. To ensure your dashboard remains effective, actionable, and aligned with dashboard UX design best practices, you need to evaluate its dashboard usability and overall performance continuously. Small, ongoing improvements can make a big difference in how easily users understand and act on the data.

Performance Optimization Tips

• Optimize Data Queries for Dashboard UX: Slow dashboards often come from heavy or inefficient queries. Use indexed fields, avoid unnecessary nested queries, and fetch only the data you need. Query caching can significantly improve load times and enhance dashboard interface design.

• Simplify Visuals and Reduce Data Points: Too many charts or overly complex visuals can reduce dashboard usability. Focus on essential metrics, use simple charts, and aggregate data when possible for clarity.

• Use Asynchronous Loading: Let charts and widgets load independently. This allows users to interact with the dashboard while other parts are still loading, creating a smoother experience.

• Optimize Images and Assets: Large images and icons can slow down dashboards. Use vector graphics or compressed formats like SVG or WebP to improve load times.

• Implement Lazy Loading: Load only the critical elements first, and render other components as users scroll or interact. This reduces initial load time and improves responsiveness.

💡Designer Tip: Regularly test your dashboard using browser developer tools. Check load times, network requests, and rendering performance to identify bottlenecks and optimize the overall dashboard UX design.

User Testing and Feedback Loops

Testing with real users is essential to ensure your dashboard interface design is intuitive, effective, and aligned with user needs. Feedback highlights usability issues you might overlook and informs meaningful improvements.

Practical Steps for Testing and Feedback

• Conduct Usability Testing: Observe real users performing tasks, like finding a metric or applying a filter. Note points of hesitation, confusion, or errors to enhance dashboard usability.

• Use A/B Testing: Compare different dashboard versions to see which design helps users complete tasks faster and with fewer mistakes. Track metrics like task completion, error rates, and satisfaction.

• Collect User Feedback: Encourage users to share their experience through surveys, forms, or interviews. Look for recurring issues, such as unclear charts or missing information.

• Iterate and Improve: Make incremental updates and test each change to ensure it resolves issues without introducing new problems. A continuous iteration approach keeps your dashboard aligned with user needs and best practices in dashboard UX design.

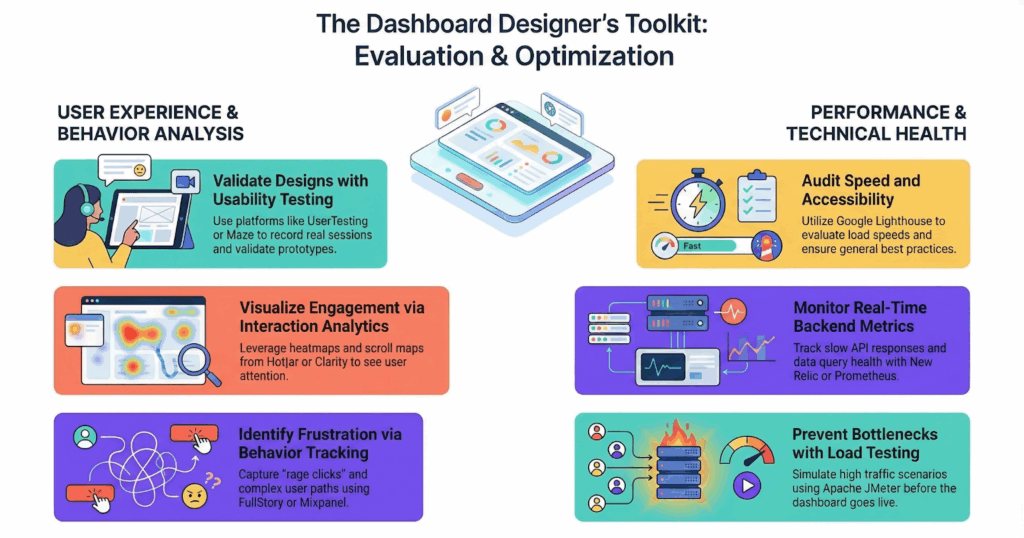

⚙️Top Tools for Dashboard Design Evaluation and Optimization

The right tools make it easier to test, analyze, and improve your dashboards. Using a combination of testing, analytics, and monitoring tools ensures your dashboards are both usable and efficient.

Here’s a breakdown of tools for different evaluation needs:

1. Usability Testing Tools

Usability testing tools help you see how actual users interact with your dashboard interface design and identify potential issues that affect dashboard usability.

• UserTesting: A popular platform for recording real user sessions, task completion metrics, and satisfaction feedback. It’s widely used by UX teams to validate design changes.
• Lookback.io: Lets you observe user sessions live or recorded, with options for interviews and direct feedback.
• Maze: Works with design tools like Figma and Adobe XD to test prototypes early in the design process, gathering insights before development.

2. Heatmap and Interaction Analytics Tools

Heatmaps show where users click, scroll, or spend attention, revealing how they actually interact with dashboard elements.

• Hotjar: Offers heatmaps, session recordings, and feedback options that show user behavior patterns.
• Crazy Egg: Provides heatmaps, scroll maps, and “confetti” reports to visualize how users engage with different parts of the dashboard.
• Microsoft Clarity: A free tool for unlimited heatmaps and session recordings.
• Mouseflow: Combines heatmaps with session replay, funnel analysis, and form interaction tracking for deeper insights into user paths.

3. Performance Monitoring and Load Testing

A slow dashboard frustrates users and reduces adoption. These tools help monitor speed, reliability, and performance under load:

• Google Lighthouse: An open‑source auditing tool that evaluates dashboard load speeds, digital accessibility, and general best practices.
• New Relic: Provides real‑time performance metrics, backend monitoring, and alerts for slow API responses or data queries.
• Prometheus: An open-source monitoring tool, often paired with Grafana for dashboard health checks.
• Apache JMeter: A load‑testing tool that helps simulate high traffic and find performance bottlenecks before dashboards go live.

4. Experience & Behavior Analytics Tools

For deeper insights into how users behave over time and across sessions:

• FullStory: Captures session replays and user interaction paths, showing frustration signals like “rage clicks.”
• UXCam: Especially strong for mobile dashboards and session analytics, helping designers understand interaction patterns at a granular level.
• Mixpanel, PostHog, Amplitude: These tools track user behavior, funnels, and event analytics, useful when you want detailed segmentation and long‑term usage trends (popular in UX communities).

These tools give you context on user journeys and behavior patterns, which you can correlate with design changes and performance improvements.

Now that we’ve explored the essential tools to evaluate, monitor, and optimize dashboards in real time, let’s take a look at a guide from experts who have truly mastered the art of dashboard design.

📘The Big Book of Dashboards: A Practical Guide for Dashboard Design

The Big Book of Dashboards by Steve Wexler, Jeffrey Shaffer, and Andy Cotgreave is one of the most searched‑for and widely recommended books on dashboard design and data visualization. This book stands out because it focuses on real‑world examples from business contexts rather than a theory.

Instead of only explaining design principles, this book shows dozens of actual dashboards used in industries like healthcare, finance, marketing, transportation, and customer service. Each example explains clearly why the dashboard works and how its design choices help users quickly understand and act on data.

Core areas covered in the book include:

📖Real‑world dashboard design examples with clear explanations

📖How to choose effective visualizations for different business questions

📖Best practices in layout, visual hierarchy, and user focus

📖Common dashboard design mistakes and how to avoid them

📖Practical guidelines for making dashboards actionable and usable

This book is perfect for anyone looking to learn by example. It’s especially valuable for professionals who want actionable guidance they can apply immediately in real projects. Many readers search for “Big Book of Dashboards examples” or “Big Book of Dashboards PDF” because its case-based approach bridges the gap between theory and practice.

Make Your Dashboard a Decision-Making Powerhouse

A dashboard is the command center of your business decisions. When designed thoughtfully, it turns raw data into clarity, helping teams spot trends, uncover insights, and act with confidence. The difference between a confusing dashboard and a high-impact one often comes down to intentional design, visual hierarchy, and user-focused experience.

At Aufait UX, a leading UI UX design company, we combine deep UX expertise, strategic business understanding, and hands-on technical know-how to craft dashboards that truly work for your users. Our services include:

✔️Custom Dashboard Design ➛ Intuitive, actionable dashboards tailored to your business needs, presenting the right data at the right time.

✔️Microsoft Power BI Dashboard services ➛ End-to-end Power BI solutions, from interactive reports to fully integrated dashboards within Microsoft 365, enabling real-time analytics across your organization.

✔️UX Design Audits & Optimization ➛ Comprehensive design system audits to improve performance, visual clarity, and user engagement, ensuring your dashboards are effective and easy to use.

We design experiences that users trust, understand, and rely on every day. With our approach, your dashboards will guide action, support strategy, and drive measurable outcomes.

👉Explore our Dashboard Design Services

Take the next step in making your data work smarter for you.

🤝Connect with Aufait UX today and let’s build dashboards that empower your teams, simplify decisions, and transform insights into results.

🔔Follow Aufait UX on LinkedIn for strategic insights grounded in real-world product outcomes.

Disclaimer: All the images belong to their respective owners.

FAQs on Dashboard Design Process
